Name: 4 Pin Female AMP Wire Connectors For E46 E39 Engine Knock Sensor 094304
Brand: YBADDVANCE
Price: 0.5 USD

Brand Name : YBADDVANCE

Model Number : BC3041A-3.0-21

Certification : ISO9001

Place of Origin : China(mainland)

MOQ : 100 UNITS

Price : USD 0.5-0.7 Per set with crimp terminals

Payment Terms : T/T, Western Union,paypal,credit card

Supply Ability : 50,000 units/month

Delivery Time : About 5-8 work days

Packaging Details : Inside packing：100 units/lot put into bags. Outside packing：carton 5 layers.

Part Number : BC3041A-3.0-21

Application : For 316ti E46 ENGINE KNOCK SENSOR

Keywords : Round Connector

Color : Black

Sealed/Unsealed : Sealed

Male/Female : Female

Number of Row : 2 Row

Number of position : 4 Pin

Leak current : 10μA Max.

Insulation resistance : 100MΩ Min.

Contact Now

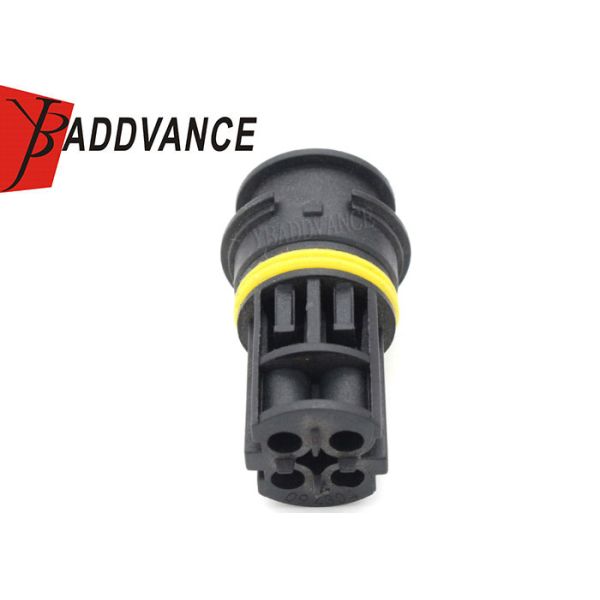

4 Pin Female AMP Wire Connectors For E46 E39 Engine Knock Sensor 094304

Product Description

YBADDVANCE amp 4 pin female connector is Fit for BMW E46 316ti SE COMPACT N42 2001>05, PING SENSOR ENGINE TIMING KNOCK SENSOR. 4 PIN CONNECTION.

This connector we supplied with Terminals Kits together.

Specification

Keywords	AMP Wire Connectors
Original Number	094304
Series	AMP TYCO Series
Male/Female	female
Material	PBT
Number of Rows	2 row
Number of Pin	4 pin
Leak current	100μA Max.
Insulation resistance	100MΩ Min.
seal	Initial 50kPa Min. after durability tests 30kPa Min.
Quality Control	All goods will be 100% inspected before shipment
Color	Black
Operating Temperature range	-40℃~120℃
Sample	We can provide you samples before place an order
Including	Connector housing,terminals,rubber seals
Main products	Electrical Connectors,wire harnesses and fuel injector repair kits..
Delivery Time	About 3-7 days
Replacement Brand	TE/AMP,Sumitomo,bosh,,kostal,FCI,FEP,furukawa and so on..
Design Ability	Please send us drawing or samples to design OEM&ODM
Market	Germany,Finland,UK,USA,CANADA,ITALY and so on...
Gross weight	1kgs/100 pieces
Shipping express	DHL/TNT/UPS/FEDEX/CHINA POST AIR MAIL

More details about pictures

4 Pin Female AMP Wire Connectors For E46 E39 Engine Knock Sensor 094304

4 Pin Female AMP Wire Connectors For E46 E39 Engine Knock Sensor 094304
